Product Introduction

KLF escalators integrate the cutting-edge technology and diversified functions, leading the new trend of escalators. Adhering to consistent superb technology, it pays more attention to the supreme concept of humanization, which contains careful consideration of customer needs and highlights technological wisdom.

Demarcation Lamp

Green Fluorescent light is istalled under the upper and lower step pedals. When two adjacent steps do not run at the same time, green Fluorescent light will be shed over the tooth mouth of the step, to help passengers identify the horizontal section of step turnover and improve the riding safety.

Large Radius Rotary Handrail Guide Rail

Large radius rotary handrail guide rail will work together with the rotary wheel set to reduce friction and prolong the of the handrail.

Skirt Panel Brush

Prevent passengers’ clothing from being caught by the apron board and the step side gap, in order to project the safety of passengers.

Running Direction Indicator (Optional)

Running direction and running-forbidden display identification is installed in the handrail entrance to show the running or running-forbidden instruction to ensure the safety of passengers.

International Standard Leads to Safety Manufacturing

Handrail inlet protection device:

If a foreign matter is stuck between the rubber head and handrail,the safety switch behind the rubber entrance will work to stop the escalator.

Emergency stop button:

In case of emergency malfuncation of the escalator,press the emergency stop button and immediately stop the escalator to avoid more accidents.

Micro-Computer Board technology (Optional)

Apply micro computer technology board technology.The fault detection function is, thus greatly improve the safety performance.

Skiriting Panel Lighting (Optional)

Apron lighting not only has beautiful light,but also stresses the escalator’s visibility in the entire building, so that passengers will ride more comfortably and securely.

Remote Monitoring Technology (Optional)

Able to conduct real-time monitoring over the data signals of the escalator’ up, down, failure and repair can be conducted to facilitate maintenance and overhaul.

Carved Details Create Superb Quality

  • The truss adopts the robotic welding technology, which greatly enhance the manufacturing process. It has lean quality and it is sturdy and durable, beautiful elegant.
  • The diameter of the contact roller is 75. This can effectively reduce the wheel pressure, and improve the step chain breaking force dramatically. The safety factor will be higher.

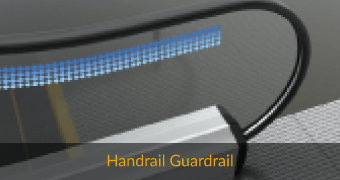

  • Large-height and high-intensity armrest guardrail is adopted. The protection height of the guardrail can amount to 1000 mm, which has improved safety performance. Meanwhile, new reinforced safety glass fixtures enable the fence to have strong stability.
  • Outdoor escalator’s lower machine room installs water level detection sensor. it can automatically detect the water level and find out ponding problems.(Optional)
  • When the ambient temperature is so low that it affects the normal operation of the escalator, the system will automatically start the heating device to ensure the normal operation of the escalator and create a comfortable riding environment for passengers. (Optional)

Green Technology Creates Environmental Pioneer

  • PLC-controlled automatic Oiling and lubrication system is able to give idle automatic oiling to the transmission chain, thus extending the life of the transmission mechanism.
  • All lighting equipment uses LED lighting technology. Compared with traditional bulbs, it can save up to 80% of the energy.
  • The oil-water separator is specially designed for outdoor escalators. The rainwater is discharged through the separator and the oil is cleaned regularly to reduce oil and protect the environment. (Optional)
  • Frequency control technology: CANNY’s newly designed inverters guarantee a steady speed adjustment in the standby mode and further reduce the energy consumption required for low speed operation. Accordingly, more energy can be saved regardless of different passenger flows. (Optional)

Safety Device

Standard Safety Device
Skirting Protection Electrical circuit protection
Step gap lighting Motor overload protection
Emergency stop button phase error or failure protection
Step loss protection over-speed protection
comb plate safety protection device unintentional reversal of the direction of travel
safety brake Safety switch inspection
Broken Drive-chain Protection Alarm device start
Standard Safety Device
Step sagging protection device Skirting brush
Warning Line Handrail inlet
Handrail speed monitor Broken step chain protection
Selective Safety Devices
Auxiliary brake (Standard configuration when H>6m) Lower machine room drain (Outdoor type)
